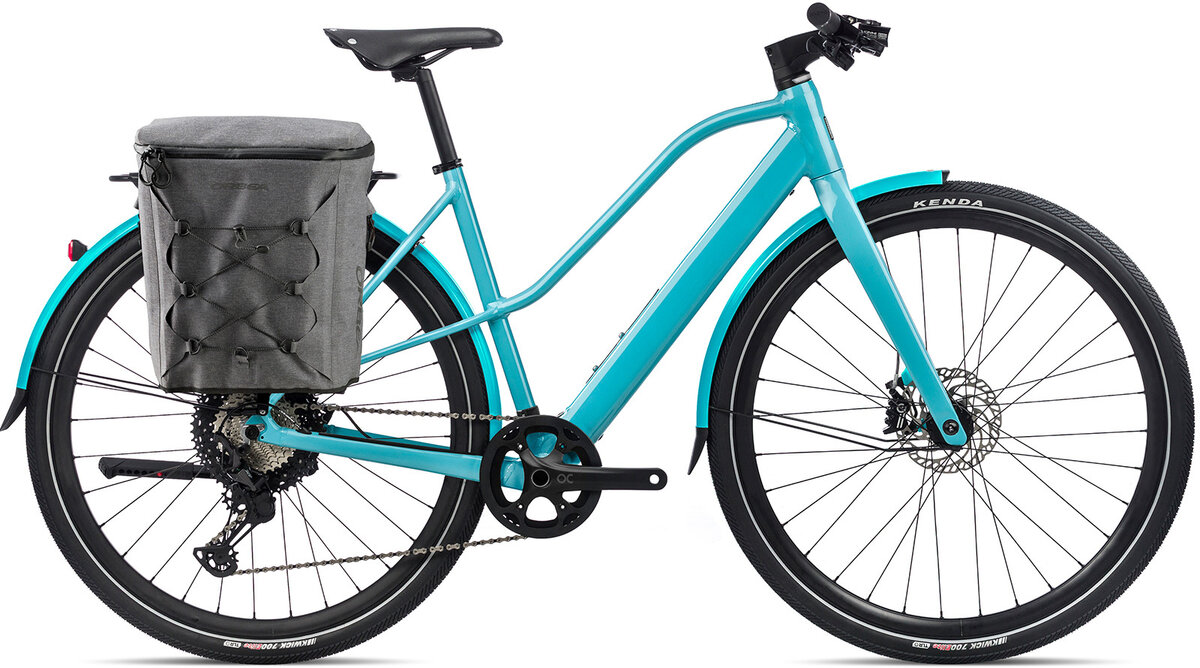

Orbea Vibe Mid H10 EQ 20MPH

Orbea Vibe Mid H10 EQ 20MPH
  • Color: Blue
  • Color: Light Green
  • Color: Metallic Dark Red
  • Color: Night Black
  • Color: Urban Green
$3,749.00
Please select options
Order now and pick up in-store!

Details

URBAN LIGHTNESS
In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.

Vibe is a bike that is lightweight and enjoyable to ride - with a motor, battery, and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

INTEGRATED LIGHTS
It's like magic - Fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high beam light Vibe is ready for the road.

IWOC TRIO
Vibe's control center is an attractive and discreet handlebar-mounted switch, putting function at your fingertips without removing your hands from the bar.

- ON, OFF AND LIGHT CONTROL
- BATTERY & ASSIST LEVEL
- INFORMATION BY RBG LED
- SMART & COMPACT

INTERNAL BATTERY
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest, and most discreet unit. Vibe's Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

PAS SENSOR
Vibe's smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.

- 40 PULSES PER SECOND
- MAGNETIZED LOCK RING SENSOR
- PROPRIETARY ALGORITHM & ELECTRONICS

ICR PLUS
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.

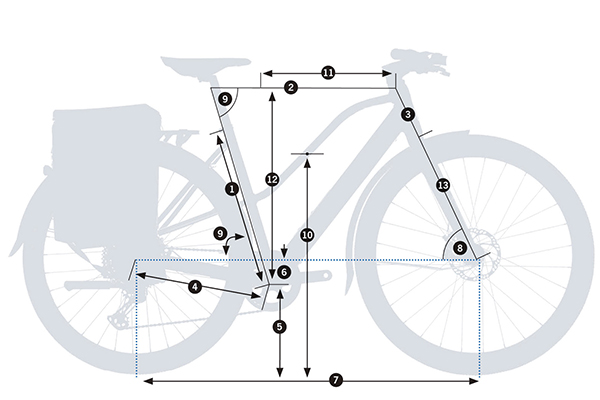

Geometry

Geometry Chart:
SmallMediumLarge
1 - SEAT TUBE (C-T) (mm) 455 490 525
2 - TOP TUBE (EFF) (mm) 517 540 562
3 - HEAD TUBE (mm) 109 141 160
4 - CHAINSTAY (mm) 435 435 435
5 - BB HEIGHT (mm) 280 280 280
6 - BB DROP (mm) 76 76 76
7 - WHEELBASE (mm) 1008 1028 1040
8 - HEAD ANGLE 71º 71º 71.5º
9 - SEAT ANGLE 75º 74.5º 74º
10 - STANDOVER (mm) 775 806 832
11 - REACH (mm) 370 380 390
12 - STACK (mm) 550 580 600
13 - FORK LENGTH (mm) 410 410 410
RAKE (mm) 44 44 44
WHEEL SIZE (mm) 712 712 712
Sizes:
SIZECRANKSTEMHANDLEBAR
Small 170 90 700
Medium 170 90 700
Large 170 90 700
Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" Small
165-175 65.0"-68.9" Medium
175-190 68.9"-74.8" Large

Specs

Frame Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Wheels Ready GR
Tires Kenda K1052 700x45C Reflective type TLR
Crankset OC 42t, w/Chainguard
Shifters Shimano Deore M6100
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Chain KMC X12
Brakes Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Handlebars Alloy 31.8mm 12mm Rise 700mm
Tape/Grips Brooks Comfort Cambium 130mm
Stem OC1 31.8mm interface -6º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost Alloy 27.2 Offset 20
Saddle Brooks Cambium C19 275x184
Pedals Sold separately
Accessories & Extras REAR CARRIER: Orbea Vibe rear luggage carrier (Max:15Kg), CARRIER ACCESSORIES: OC, Carrier side bag, backpack convertible with inner computer bag. 15l, waterproof, reflective, MUDGUARD: CURANA Apollo 55mm, FRONT POSITION LIGHT: Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50, FRONT LIGHT: Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens, REAR LIGHT: Lezyne FENDER STVZO, QUICK STAND: Ursus Mooi R90 rear alloy adjustable, BELL: Knog OI Classic
Motor Ebikemotion X35 Plus 20mph
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Charger Ebikemotion X35

* Subject to change without notice.
