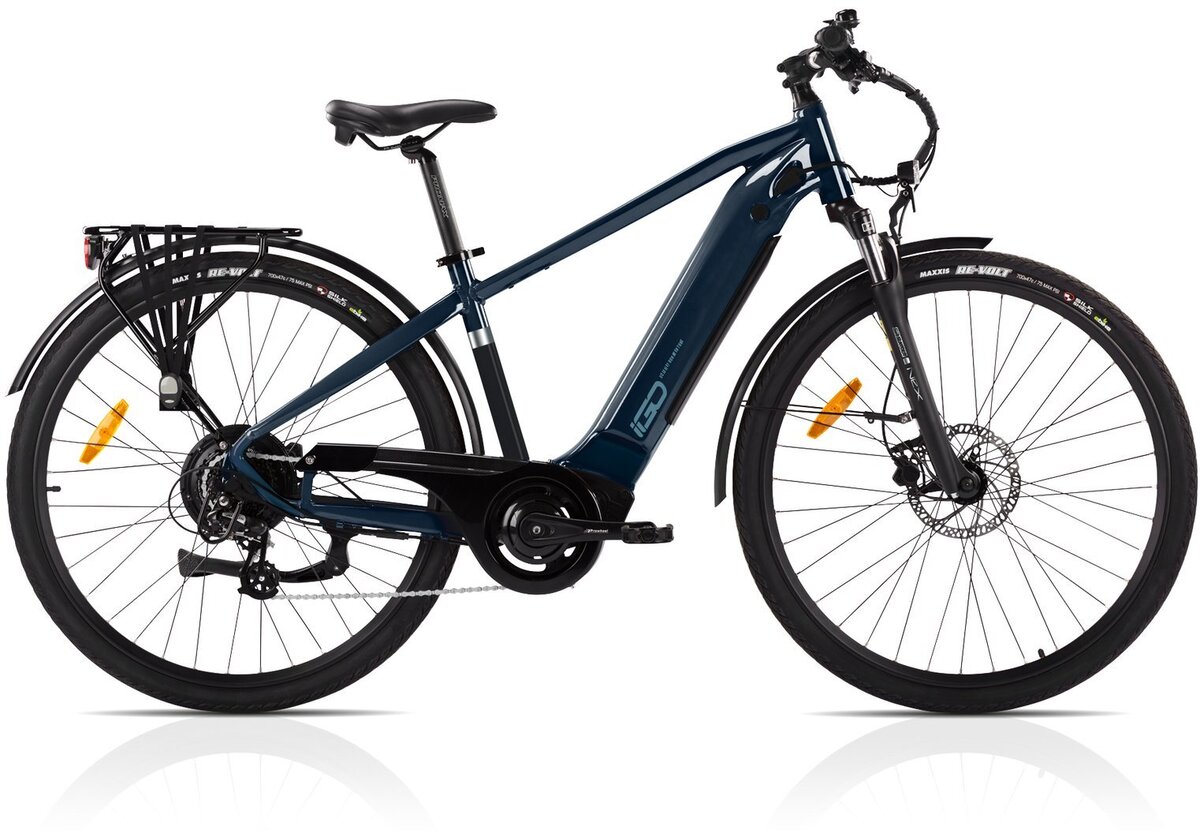

Igo Discovery Bonaventure

A cross-platform e-bike with sloping top tube built on 28” wheels that inspires fun and confidence with every pedal stroke.

-The ERGOFIT philosophy - our tool-less adjustable cockpit and new, more stable geometry makes for a true “one-bike-fits-all" experience with any drawbacks.

-A new compact diamond frame design adds a sloping top tube that makes for a sportier look and stiffer ride while keeping it easy to mount and dismount.

FRAME Hydroformed 6061 Aluminum 700 hybrid ERGOFIT frame with smooth welds. Fender/rack mounts, internal cable routing, Electronic Access Port. Removable integrated battery with security lock.

COLOR: Gloss Moonlight Blue with Nickel accents

FORK: SUNTOUR NEX 700C suspension, 63mm travel, hydraulic lockout

SHIFTERS: SHIMANO ALTUS 8-speed Rapidfire trigger shift

FRONT DERAILLEUR: NA

CHAINRINGS: PROWHEEL 42T

CHAIN: KMC Z8

REAR DERAILLEUR: SHIMANO ALTUS 8-speed

CASSETTE: 8-speed 11-34T

HANDLEBAR: Alloy ERGOFIT touring bar

GRIPS: VELO double density, anatomic design, open end (135mm)

STEM: Toolless, multi adjustable

SEATPOST: Alloy 31.6mm with quick release

SADDLE: VELO for iGO

BRAKE LEVERS: TEKTRO with Sensor Control Design and reach adjustment

BRAKE CALIPERS: TEKTRO hydraulic disc

ROTORS: 180mm

WHEELS:

TIRES: MAXXIS Re-Volt 700x47, 28"x1.75" with SilkShield bead-to-bead puncture protection

RIMS: ALEX DP25 700C - black alloy

ELECTRIC TECHNOLOGY

iGO CONNECT Mobile App (Android and iOS)
Customizable profile and performance settings with full diagnostic monitoring and alerts - Bluetooth connectivity

DISPLAY UNIT TFT Color Backlit, Main Power, Vibration Feedback Buttons, Diagnostic, Battery Status, Light Switch, Pedal Assist Level Selector, Walk Assist Control, Speedometer/Max Speed/Avg Speed, Odometer, Trip Timer

MOTOR 500W geared rear hub drive, 48V (750W US)

TORQUE up to 53Nm

CONTROLLER 48V high power density sine wave, MOSFET based up to 70 Amp, Bluetooth

BATTERY TYPE SAMSUNG integrated removable lithium battery with security lock

BATTERY VOLTAGE (V) 48V

BATTERY (AH) 14Ah

BATTERY CAPACITY (WH) 672Wh

RANGE 90km (56mi) *

POWER ASSIST 9 Levels of power assisted pedaling ***

THROTTLE Any time on demand thumb throttle (Removable)

SENSOR Electronic 32 pulse Cadence Sensor integrated into the bottom bracket

CLASS** Class2 / Class1 optional / Class3 capable where permitted

max speed 45km/h (28mph)**

BATTERY CHARGER 110/220V Smart charger, LED status, CUL, 2A

OTHER
ACCESSORIES (INCLUDED) Front BUCHEL Shiny 50 lux LED Light (powered by main battery), Rear BUCHEL Edge LED Light (powered by main battery), Front & Rear Alloy Fenders, Integrated Alloy Rear Cargo Rack, Rear Bungee Straps, Chain Guard, Water Bottle Boss on Seat Tube, Kickstand, Tool Kit,
Battery Charger

BIKE WEIGHT 25.0kg (55.2lbs)
BATTERY WEIGHT 3.1kg (6.8lbs)
WEIGHT CAPACITY 114kg (250lbs)
