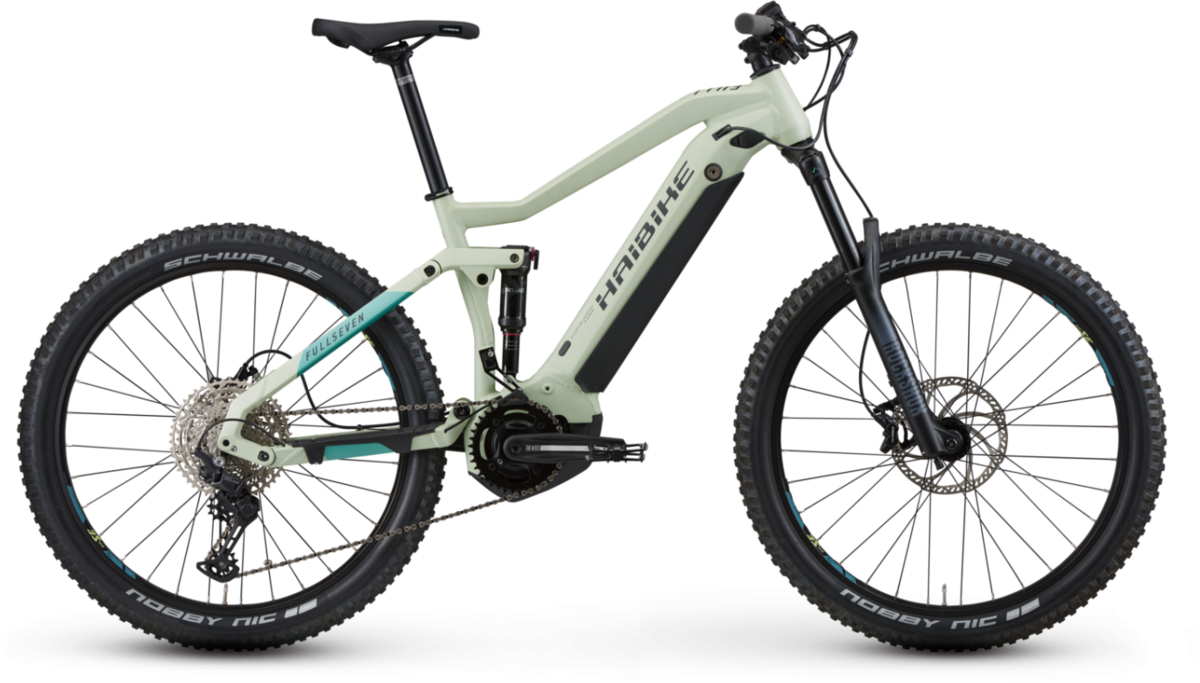

Haibike FullSeven 5
$3,499.00 - $4,650.00
$4,650.00
Details
Are you looking for an eBike to tackle steep climbs as well as difficult descents? The FullSeven 5 is your perfect Long Travel-eMTB for every terrain: Its Yamaha PW-ST motor with integrated 500Wh battery gives reliable and powerful support. 150mm rear travel, 4-piston disc brakes and 27.5" wheels with plus tires ensure you have fun while keeping you safe in every situation.
| Frame Size | SM/40 | MD/44 | LG/48 | XL/52 |
|---|---|---|---|---|
| Bike Stand Over Height | 820.0 mm | 830.0 mm | 850.0 mm | 870.0 mm |
| Bike Seat Tube Length | 400.0 mm | 440.0 mm | 480.0 mm | 520.0 mm |
| Bike Top Tube Length | 590.0 mm | 600.0 mm | 620.0 mm | 640.0 mm |
| Bike Head Tube Length | 140.0 mm | 125.0 mm | 130.0 mm | 135.0 mm |
| Bike Head Angle | 67.0 mm | 67.0 mm | 67.0 mm | 67.0 mm |
| Bike Seat Angle | 73.0 mm | 73.0 mm | 73.0 mm | 73.0 mm |
| Bike Wheel Base | 1190.0 mm | 1198.0 mm | 1219.0 mm | 1239.0 mm |
| Bike Chain Stay Length | 470.0 mm | 470.0 mm | 470.0 mm | 470.0 mm |
| Bike Stack | 625.0 mm | 612.0 mm | 616.0 mm | 621.0 mm |
| Bike Reach | 399.0 mm | 413.0 mm | 432.0 mm | 450.0 mm |
| Bike Fork Travel | 160.0 mm | 160.0 mm | 160.0 mm | 150.0 mm |
Specs
| Frame | Aluminum 6061, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm |
|---|---|
| Fork | RockShox FS 35Silver Coil 150mm |
| Rear Shock | RockShox Deluxe Select Plus Air |
| Rims | Rodi, Tryp 35, with eyelets, hollow rim, Aluminium |
| Hubs |
Front: Haibike, TheHub++ Boost, with 15mm thru axle, 32 Hole Rear: Haibike The eHub++, Cassette,32 Hole |
| Spokes | Black |
| Tires | Schwalbe, Nobby Nic Evo SnakeSkin, 70-584, 27.5" x 2.80" |
| Crankset | Haibike - The Crank + 38t chainring |
| Chainrings | Haibike Forged Aluminum, 38 Tooth |
| Shifters | Shimano, Deore M5100, Rapidfire, 11 speed |
| Rear Derailleur | Shimano, Deore M5100 |
| Cassette/Freewheel | Shimano, HG5100, 11 - 51 teeth, 11 speed |
| Chain | KMC X11e, 11 Speed |
| Brakes | Tektro, HD M745 Hydrualic, ORION, 4 Piston, 203mm Front, 180mm Rear |
| Brake Levers | Tektro HD M745 ORION |
| Handlebars | Haibike Components TheBar ++ 740mm |
| Tape/Grips | Haibike MTB, w/Lock |
| Stem | Haibike Components TheStem ++, 60mm, 31.8mm |
| Headset | A-Head, Tapered |
| Seatpost | XLC AllMtn, 31.6mm |
| Saddle | Haibike Components TheSaddle + Mens |
| Pedals | Haibike Freeride |
| Motor | Yamaha PW-ST System, 250W, 70Nm, 20 mph |
| Battery | Yamaha Lithium Ion 500Wh |
| Controller/Display | Yamaha Side Switch |
| Charger | Yamaha Charger 4 Amp |
* Subject to change without notice.
