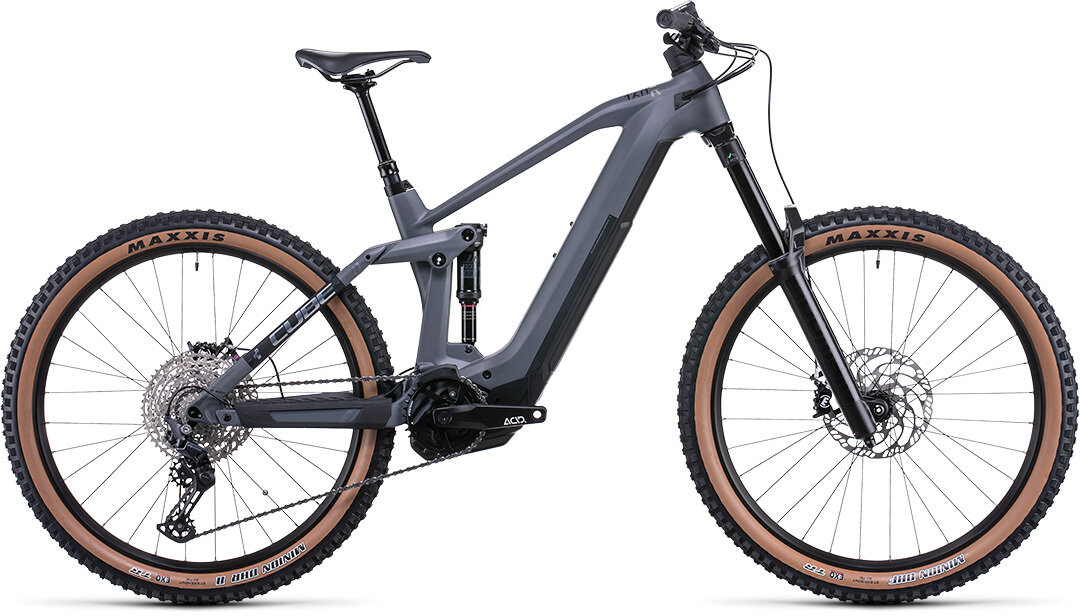

CUBE Bikes Stereo Hybrid 160 HPC Race 625 27.5

CUBE Bikes Stereo Hybrid 160 HPC Race 625 27.5
  • Color: grey'n'metal
  • Color: lunar'n'grey
$4,499.99 - $6,149.00
$6,149.00
Please select options

Details

With the Stereo Hybrid 160 HPC we combined enduro-worthy levels of travel with Bosch's e-bike capability into a single, stylish and extremely capable frame. The carbon main frame houses our Modular Battery System and fourth-generation Bosch drive unit entirely inside the down tube. Hidden by a cover with shock protection, push-button access and a hidden lock, the battery is both secure and easy to access. There's even space for a bottle cage mount. The trunnion shock mount, oversize linkage bearings, Boost 148 rear end and 1.5in head tube all contribute to accurate tracking, even when it's all coming at you thick and fast. And sorted, race-inspired geometry gives you the advantage you need to show the trail exactly who's boss.

Enduro just got an extra shot of excitement. The Stereo Hybrid 160 HPC Race 625 puts you firmly in control, with 170mm of RockShox suspension travel courtesy of a brand-new RockShox Domain R fork and Deluxe Select shock. Magura's MT Thirty hydraulic discs and Maxxis Minion DHF 2.5in and DHR II 2.4in tires ensure you're always on top of the action, whatever the conditions. Shimano's reliable and smooth-shifting Deore 1x12 gears work with Bosch's fourth-generation CX drive unit and 625Wh battery to keep the wheels turning. And a remote dropper post is standard, as you'd expect.

bike frame with labeled dimensions

Bike Sizes:
16" / 27.5 / Small18" / 27.5 / Medium20" / 27.5 / Large22" / 27.5 / X-Large
A. Reach 420mm 440mm 460mm 480mm
B. Stack 598mm 605mm 614mm 632mm
C. Standover 772mm 772mm 772mm 799mm
D. Effective Top Tube 568mm 590mm 613mm 638mm
E. Head Tube Angle 65° 65° 65° 65°
F. Head Tube Length 105mm 112mm 122mm 142mm
G. Seat Tube Angle 75.5° 75.5° 75.5° 75.5°
H. Seat Tube Length 375mm 420mm 470mm 520mm
J. Bottom Bracket Drop -12.5mm -12.5mm -12.5mm -12.5mm
M. Wheelbase 1183mm 1206mm 1230mm 1259mm
O. Chainstay Length 441.5mm 441.5mm 441.5mm 441.5mm

Specs

Frame C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
Fork RockShox Domain R, Tapered, 15x110mm, eMTB Approved, 170mm
Rear Shock RockShox Deluxe Select, 205x60mm, Rebound Adjust, Trunnion Mount
Rims CUBE EX30, 32H, Disc, Tubeless Ready
Hubs FRONT HUB Shimano HB-MT400-B, 15mm, Boost, Centerlock
REAR HUB Shimano FH-MT410-B, 12mm, Boost, Centerlock
Tires FRONT TIRE Maxxis Minion DHF, Dual/EXO, Tubeless Ready, 2.5 WT
REAR TIRE Maxxis Minion DHR II, Dual/EXO, Tubeless Ready, 2.4 WT
Crankset ACID E-Crank, 165mm, 36T
Shifters Shimano Deore SL-M6100, Rapidfire-Plus
Rear Derailleur Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Cassette/Freewheel Shimano Deore CS-M6100, 10-51T
Chain Shimano CN-M6100GUIDE
Brakes Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Handlebars Newmen Evolution SL 318.25, 760mm
Tape/Grips ACID React Pro
Stem CUBE Performance Stem E-MTB, 31.8mm
Headset ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seatpost CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (S: 100mm, M: 125mm, L, XL: 150mm)
Saddle Natural Fit Venec
Pedals Sold separately
Motor Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery Bosch PowerTube 625
Controller/Display Bosch Purion
Charger Bosch 2A

* Subject to change without notice.
