Details
The Stereo Hybrid 140 HPC 750's brand-new frame packs a big punch. Our Modular Battery System helped us create the space for a high-capacity 750Wh battery, giving you all the juice you need for extended trail adventures. Integrated cable routing makes for a tidy appearance, lower maintenance and a stronger frame, because there are no cable holes in the head tube area. The battery and fourth-generation Bosch CX drive unit are protected from dust and moisture, of course. The Boost 148 rear axle and large pivot bearings translate into great handling. And our All Mountain Geometry is carefully designed to work with both the suspension kinematics and Bosch's drive system, so you end up with a bike that's stable, confidence-inspiring and fun.
New for 2022, the Stereo Hybrid 140 HPC Actionteam 750 gives all-mountain e-MTB performance an extra boost. Four-piston Shimano XT brake calipers harness the incredible grip of Schwalbe's Magic Mary SuperTrail and Big Betty SuperGravity 2.4in tires to provide powerful speed control, no matter the conditions. Shimano XT 1x12 gears deliver the combined power of the fourth-generation Bosch CX drive unit and your pedaling to the Newmen Evolution wheelset, backed up by the new 750Wh battery for more range than ever. And with a Fox 36 Float Factory fork, Float X Factory shock and remote dropper post, you'll soon discover that winning feeling out on the trail.

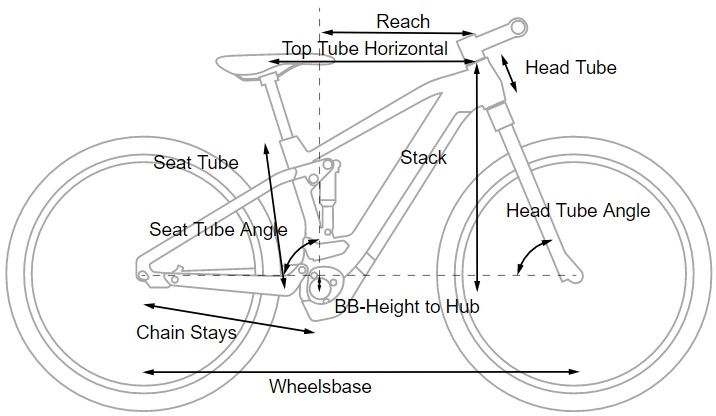

18" / 29 / Medium | 20" / 29 / Large | 22" / 29 / X-Large | |
---|---|---|---|
A. Reach | 446.8 | 472.8 | 496.8 |
B. Stack | 625.5 | 636.5 | 652.9 |
C. Standover | 764.4 | 762.6 | 784.6 |
D. Effective Top Tube | 600 | 630 | 660 |
E. Head Tube Angle | 66 | 66 | 66 |
F. Head Tube Length | 108 | 120 | 138 |
G. Seat Tube Angle | 75.5 | 75.5 | 75.5 |
H. Seat Tube Length | 420 | 460 | 490 |
J. Bottom Bracket Drop | 36 | 36 | 36 |
M. Wheelbase | 1220.7 | 1251.6 | 1282.9 |
O. Chainstay Length | 457 | 457 | 457 |
Specs
Frame | C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH, Full Integrated Battery, Advanced Internal Cable Routing |
---|---|
Fork | Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated |
Rear Shock | Fox Float X Factory, 205x60mm, Trunnion Mount, Adjustable LSC w/2-Pos. Lever, Kashima Coated |
Wheels | Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless ReadyT |
Tires |
FRONT TIRE Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4 REAR TIRE Schwalbe Big Betty, Super Gravity, Addix Soft, Kevlar, 2.4 |
Crankset | e*thirteen Plus Crank, 165mm, 34T |
Shifters | Shimano XT SL-M8100-IR, Direct Attach |
Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Cassette/Freewheel | Shimano XT CS-M8100, 10-51T |
Chain | Shimano CN-M8100GUIDE |
Brakes | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
Handlebars | Newmen Advanced 318.25, Carbon, 780mm |
Tape/Grips | ACID Disrupt, Soft Compound |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Seatpost | Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm) |
Saddle | Natural Fit Venec |
Pedals | Sold separately |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
Battery | Bosch PowerTube 750 |
Controller/Display | Bosch Kiox 300 |
Charger | Bosch 4A |
* Subject to change without notice.
